D02-C205-07501

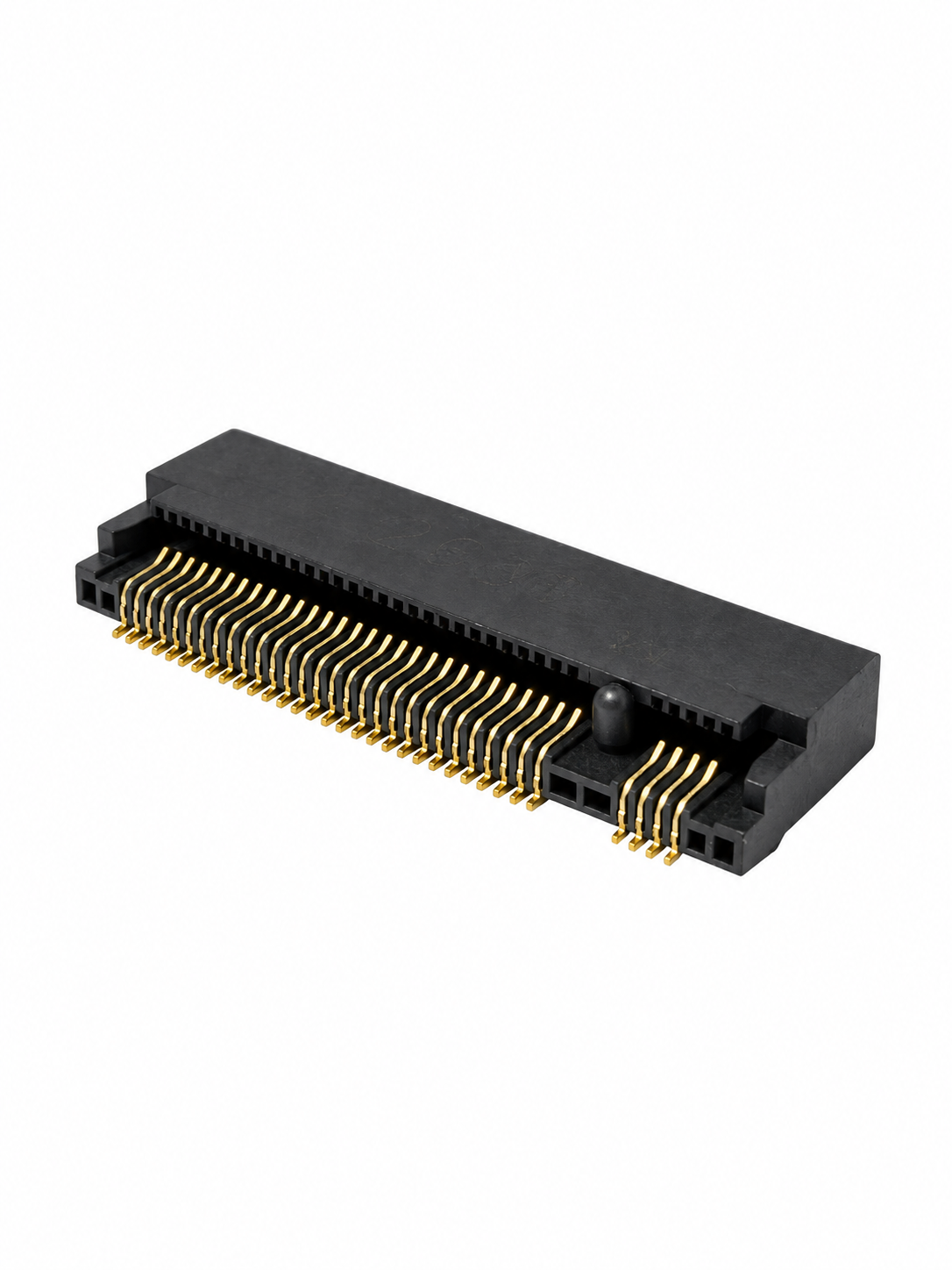

Gen5 M.2 Socket, Horizontal, Standard, H=3.2mm

The Gen5 M.2 Socket Horizontal Standard H=3.2mm Connector provides compact connectivity for compatible M key storage modules. Featuring 67 contacts at 0.50 mm pitch, its horizontal SMT design supports efficient PCB integration. The 3.2 mm maximum height accommodates limited installation space, while gold plated contacts, metal mounting tabs and an integrated ground bar provide reliable electrical connections and secure board attachment.

Interested in This Product?
Add this product to your inquiry list and send us your requirements. Our team will get back to you with the information you need. If you can’t find exactly what you’re looking for, feel free to contact us.

Inquiry
Categories: , , , , , Tags: , , ,

Product General Information
Component Type
Socket
Mounting Style
Top-Mount
Contact Pin Type
SMT
Orientation
Horizontal
Product Specification
Physical Characteristics
Contact Count
67
Contact Material
Copper Alloy
Contact Plating
Gold Flash
Pitch (mm)
0.5
Height (mm)
3.2
Housing Material
LCP UL94V-0
Housing Color
Black

Electrical Characteristics
Insulation Resistance
500MΩ Min. @ 500V DC
Current Rating
0.5A
Voltage Rating
50V DC
Dielectric Withstanding Voltage
300V AC/Min.
Contact Resistance
55mΩ Max.

Mechanical Characteristics
Insertion Force
25N Max.
Withdrawal Force
25N
Durability
60 Cycles

Solder Process Characteristics
Solder Process Type
Reflow
Recommended Process Temperature
260°C For 10 seconds

Environmental
Operating Temperature Range
-40°C ~ +80°C
Storage Temperature Range
-40°C ~ +80°C
RoHS
RoHS 2.0
Halogen Free(HF) Compliance
Yes

Others
Packaging
Tape Reel

Key Features
Compact Horizontal Design
A 3.2 mm maximum height accommodates installations with limited space.
M Key Configuration
Features 67 contacts at 0.50 mm pitch for compatible modules.
Integrated Ground Bar
Stainless steel ground bar provides grounding within the connector assembly.
Typical Applications
Electronics
Consumer electronics and computing devices.
Industrial
Automation, control systems and robotics.
Telecommunications
Networking and communication equipment.
