M31-C202-00201

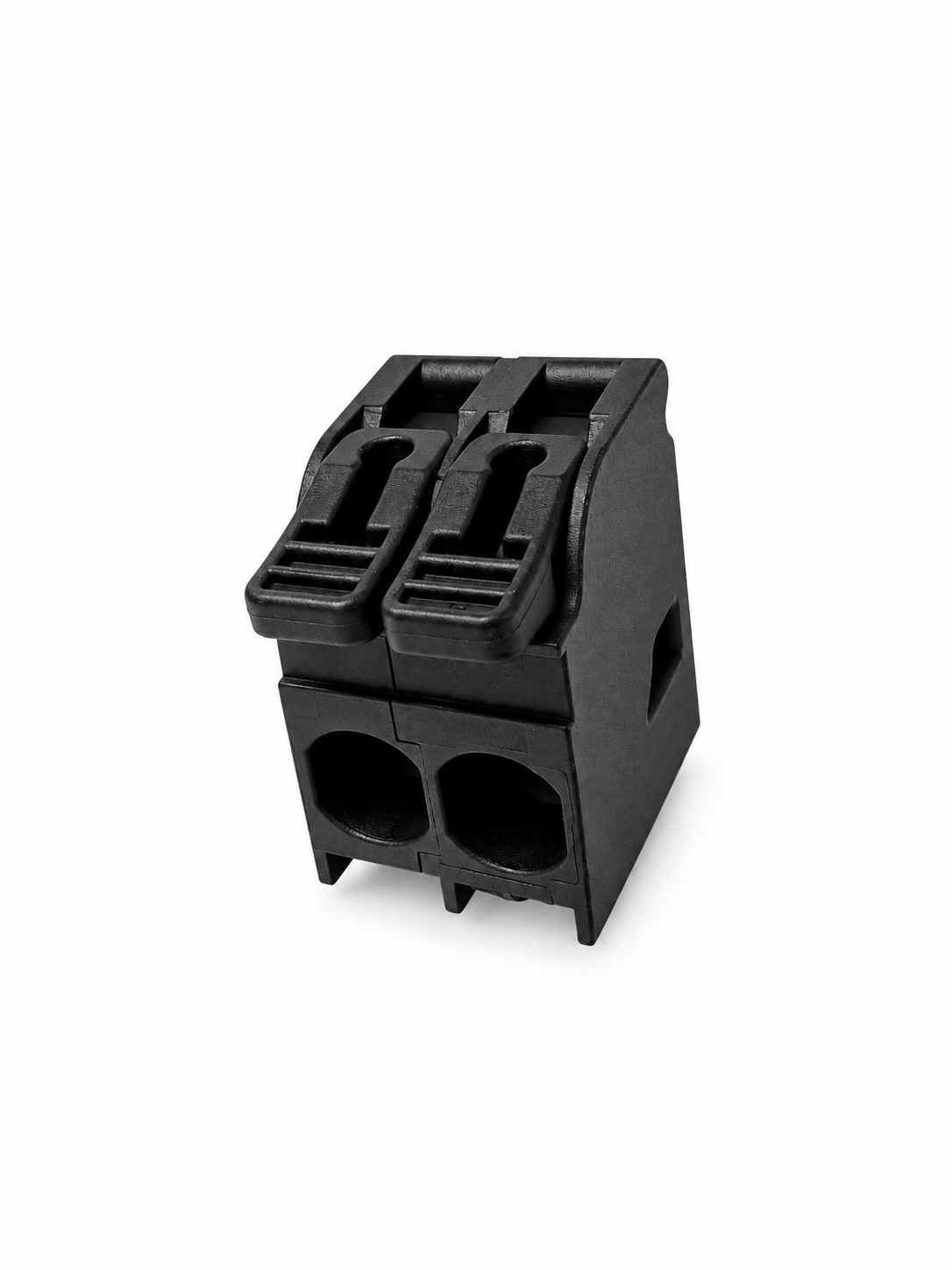

Terminal Block, Right Angle, DIP, 2Pin

The Terminal Block Right Angle DIP 2Pin Connector provides convenient wire to board connectivity for power and control applications. Its lever operated spring clamps simplify wire insertion and release while securing conductors. Two terminals at 7.50 mm pitch support PCB integration through DIP mounting. Tin plated copper contacts and a UL94V-0 PA66 housing provide reliable electrical connection and insulation.

Interested in This Product?
Add this product to your inquiry list and send us your requirements. Our team will get back to you with the information you need. If you can’t find exactly what you’re looking for, feel free to contact us.

Inquiry
Categories: , , , , , , Tags: , , ,

Product General Information
Component Type
Terminal Block
Mounting Style
Top-Mount
Contact Pin Type
DIP
Orientation
Right Angle
Product Specification
Physical Characteristics
Contact Count
2
Contact Material
Copper
Contact Plating
Tin
Pitch (mm)
7.5
Height (mm)
24.1
Housing Material
Polyamide 66
Housing Color
Black

Electrical Characteristics
Insulation Resistance
2000MΩ Min. @ 500V DC
Current Rating
30A
Voltage Rating
600V
Dielectric Withstanding Voltage
2200V AC/Min

Mechanical Characteristics
Insertion Method
Lever Operated Spring Clamp
Withdrawal Method
Lever Operated Spring Clamp

Solder Process Characteristics
Solder Process Type
Wave
Recommended Process Temperature
265°C 6 Seconds Max.

Environmental
Operating Temperature Range
-40°C ~ +105°C
Storage Temperature Range
-40°C ~ +85°C
RoHS
RoHS 2.0
Halogen Free(HF) Compliance
Yes

Others
Packaging
Bag

Key Features
Lever Operated Wiring
Lever operated spring clamps simplify wire insertion and secure retention.
Right Angle DIP Design
Two terminals with 7.50 mm pitch support right angle wiring.
Reliable Contact Materials
Tin plated copper contacts and PA66 housing provide conductive and insulating properties.
Typical Applications
Electronics
Consumer electronics and computing devices.
Industrial
Automation, control systems and robotics.
Medical
Medical devices and diagnostic equipment.
Telecommunications
Networking and communication equipment.
