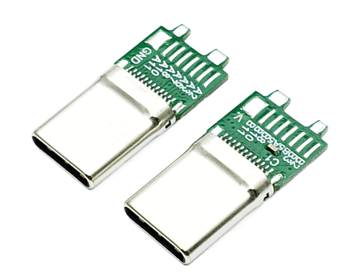

USB Type-C Plug with 10nF Capacitor

The USB Type-C Plug with 10 nF Capacitor Connector provides stable power and high-speed data connectivity for cable assemblies and charging products. Its integrated capacitor improves signal integrity and power stability while reducing external component requirements. Compact and durable construction simplifies assembly for charging cables, consumer electronics, industrial equipment and customized USB Type-C applications.

Interested in This Product?
Add this product to your inquiry list and send us your requirements. Our team will get back to you with the information you need. If you can’t find exactly what you’re looking for, feel free to contact us.

Inquiry
Categories: , , , , , , Tags: , , , ,
Product General Information
Component Type
Plug
Contact Pin Type
Clamp
Product Specification

Physical Characteristics
Shell Material
SUS316, Ni Plating
Contact Count
24 Pin
Contact Material
Copper Alloy
Contact Plating
Gold (Au:1u”)
Pitch
0.5mm
Housing Material
PA-9T UL94 V-0
Housing Color
Black

Electrical Characteristics
Insulation Resistance
100MΩ Min.
Current Rating
5.0A For VBUS, 1.25A For Vconn and GND, 0.25A For all other contacts
Voltage Rating
DC 20V
Dielectric Withstanding Voltage
100VAC/Min.
Contact Resistance
Initial 40mΩ Max., After 50mΩ Max.

Mechanical Characteristics
Insertion Force
5~20N
Withdrawal Force
Initial 8~20N, After 10000 Cycle 6~20N
Durability
10000 Cycles Min.

Solder Process Characteristics
Solder Process Type
Reflow
Recommended Process Temperature
260°C 5 ~ 10 Seconds

Environmental
Operating Temperature Range
-40°C ~ +85°C
Storage Temperature Range
-20°C ~ +85°C
RoHS
RoHS 2.0
Halogen Free(HF) Compliance
Yes

Others
Packaging
Tray

Key Features
Full 24-Pin USB Type-C Interface
Supports dependable power delivery and high-speed data transmission.
integrated 10 nF Capacitor
Improves signal integrity and power stability during operation.
Simplified Circuit Integration
Reduces external components and improves cable assembly efficiency.

Typical Applications
Electronics
Consumer electronics and computing devices.
Industrial
Automation, control systems and robotics.
Telecommunications
Networking and communication equipment.
