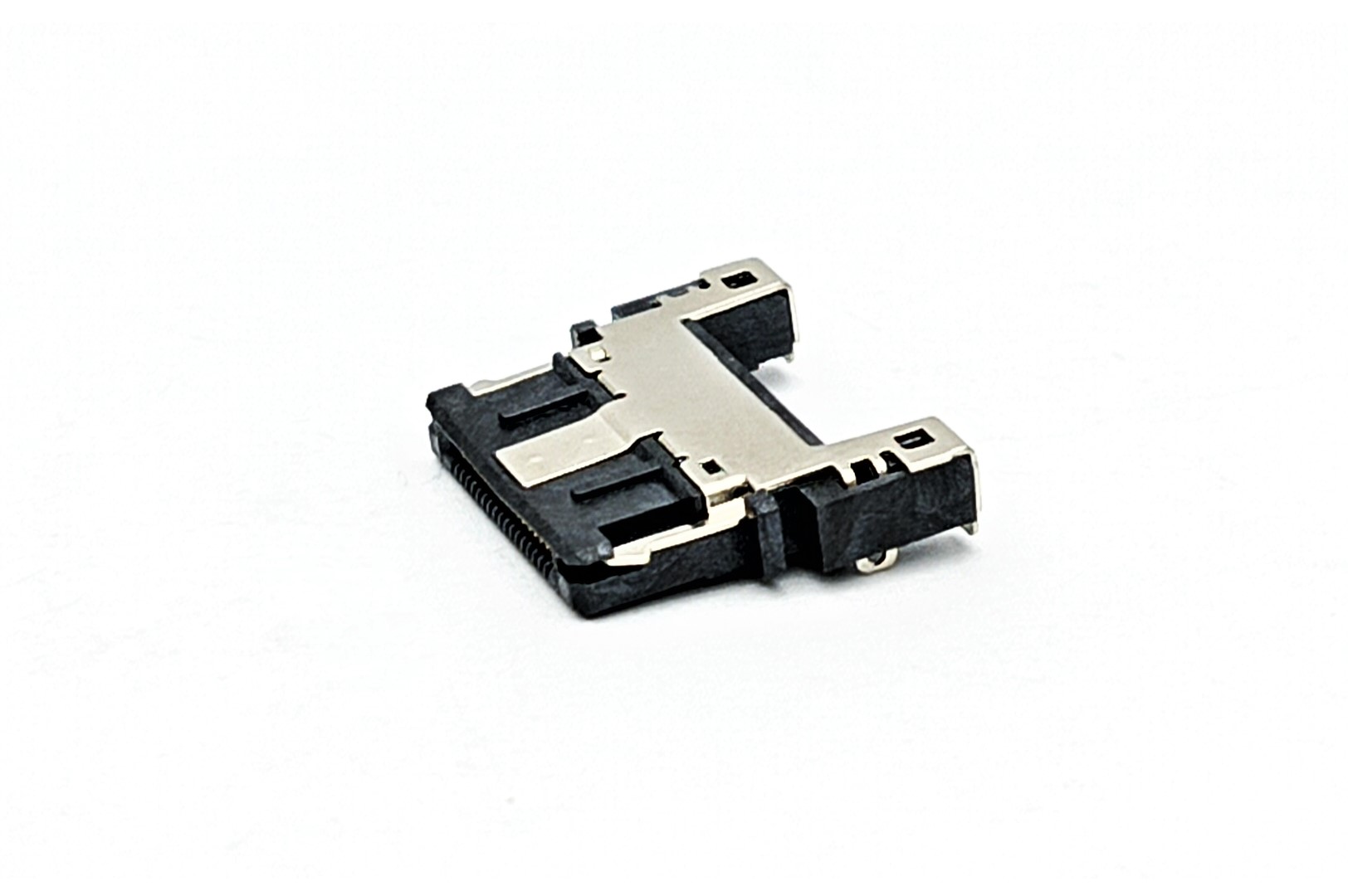

Plug In Connector, Horizontal, SMT

The Plug In Horizontal SMT Connector features an 18 position configuration and compact 0.50 mm pitch for space efficient PCB integration. Rated at 0.5 A, it combines gold plated copper alloy contacts, a black synthetic resin housing and a stainless steel shell. Its secure locking structure and 10,000 cycle mating durability ensure stable electrical performance and reliable operation in frequently connected electronic applications.

Interested in This Product?
Add this product to your inquiry list and send us your requirements. Our team will get back to you with the information you need. If you can’t find exactly what you’re looking for, feel free to contact us.

Inquiry
Categories: , , , , , Tags: , , ,
Product General Information
Component Type
Plug
Mounting Style
Top-Mount
Contact Pin Type
SMT
Orientation
Horizontal
Product Specification

Physical Characteristics
Shell Material
Stainless Steel, Ni Plating
Contact Count
18
Contact Material
Copper Alloy
Contact Plating
Gold (Au:5u”)
Pitch
0.5mm
Housing Material
Synthetic Resin
Housing Color
Black

Electrical Characteristics
Insulation Resistance
100MΩ Min.
Current Rating
0.5A
Voltage Rating
5V
Dielectric Withstanding Voltage
350V AC/Min.
Contact Resistance
60mΩ Max.

Mechanical Characteristics
Insertion Force
29.4N Max.
Withdrawal Force
29.4N Max.
Durability
10000 Cycle

Solder Process Characteristics
Solder Process Type
Reflow
Recommended Process Temperature
260°C 5 ~ 10 Seconds

Environmental
Operating Temperature Range
-40°C ~ +85°C
Storage Temperature Range
-20°C ~ +85°C
RoHS
RoHS 2.0
Halogen Free(HF) Compliance
Yes

Others
Packaging
Tape Reel

Key Features
Compact 0.50 mm Pitch
Supports space efficient PCB layouts with 18 reliable contact positions.
High Mating Durability
Supports 10,000 mating cycles for reliable long term product operation.
Secure Electrical Performance
Gold plated contacts support 0.5 A and stable locked engagement.
